Styling

Properties Sidebar

Click the icon in the mind map header to open the properties sidebar. It has two tabs:

Map Tab

Global settings for the current map:

  • Theme — Choose from 13 presets or create your own
  • Layout direction — Left-right or top-down
  • Layout algorithm — Classic (tree) or radial
  • Balance — One-side, both-sides, or alternating
  • Layout side — Right, left, down, or up (for one-side balance)
  • Spacing — Horizontal (parent-to-child) and vertical (sibling) spacing
  • Branch lines — Style, pattern, thickness, taper, and color
  • Node shape — Default shape for all nodes
  • Max node width — Text wraps at this width
  • Background color — Map canvas color

Format Tab

Style the currently selected node(s):

  • Shape and custom width
  • Fill color
  • Border — Color, width, style (solid/dashed/dotted)
  • Text — Font, size, weight, color, alignment (left/center/right/justify)
  • Branch line — Per-node overrides for color, thickness, style, pattern, taper

Each section has a reset button to clear overrides.

Themes

Osmosis includes 13 themes:

Default theme

Ocean theme

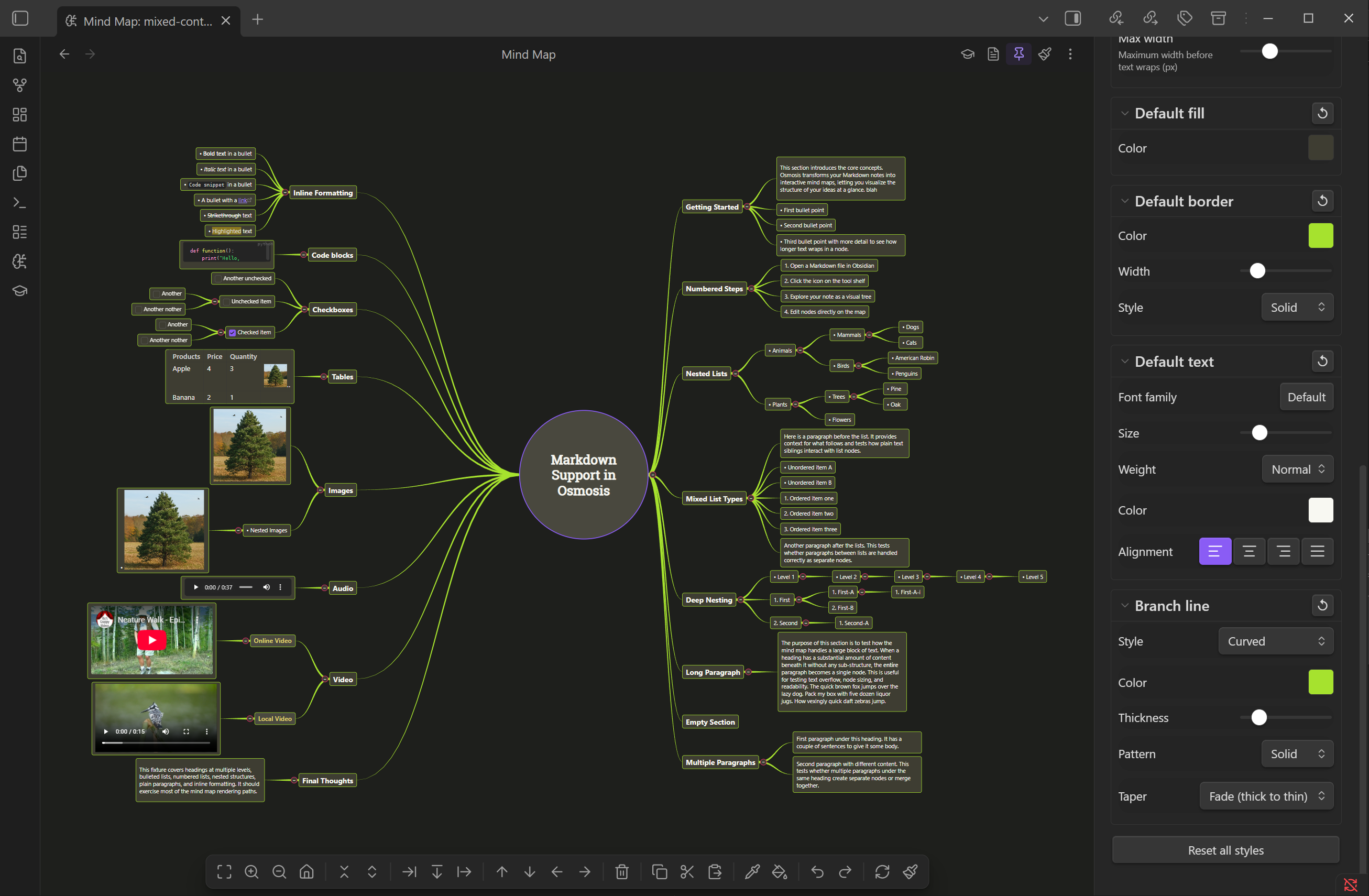

Monokai theme

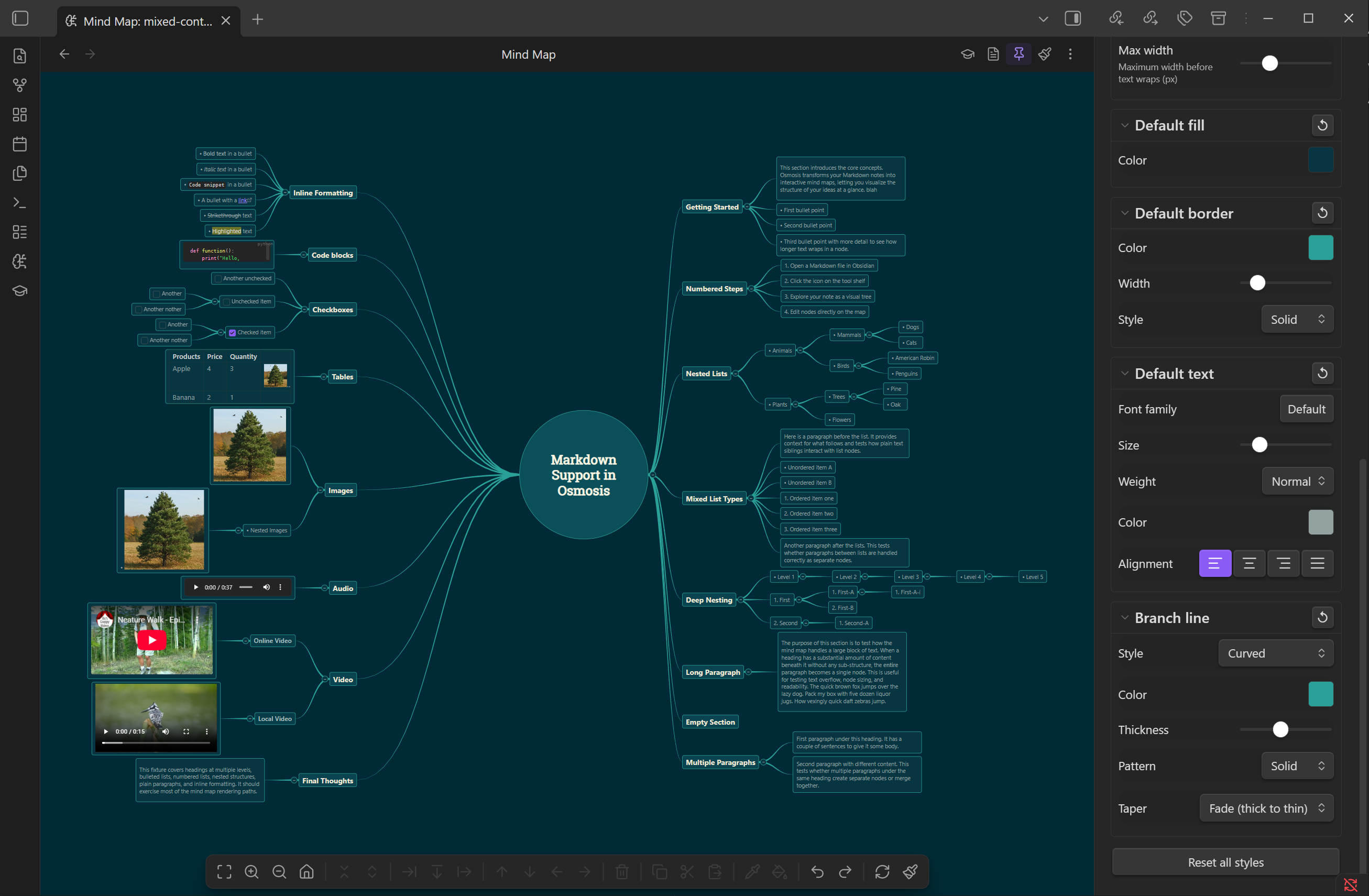

Solarized Dark theme

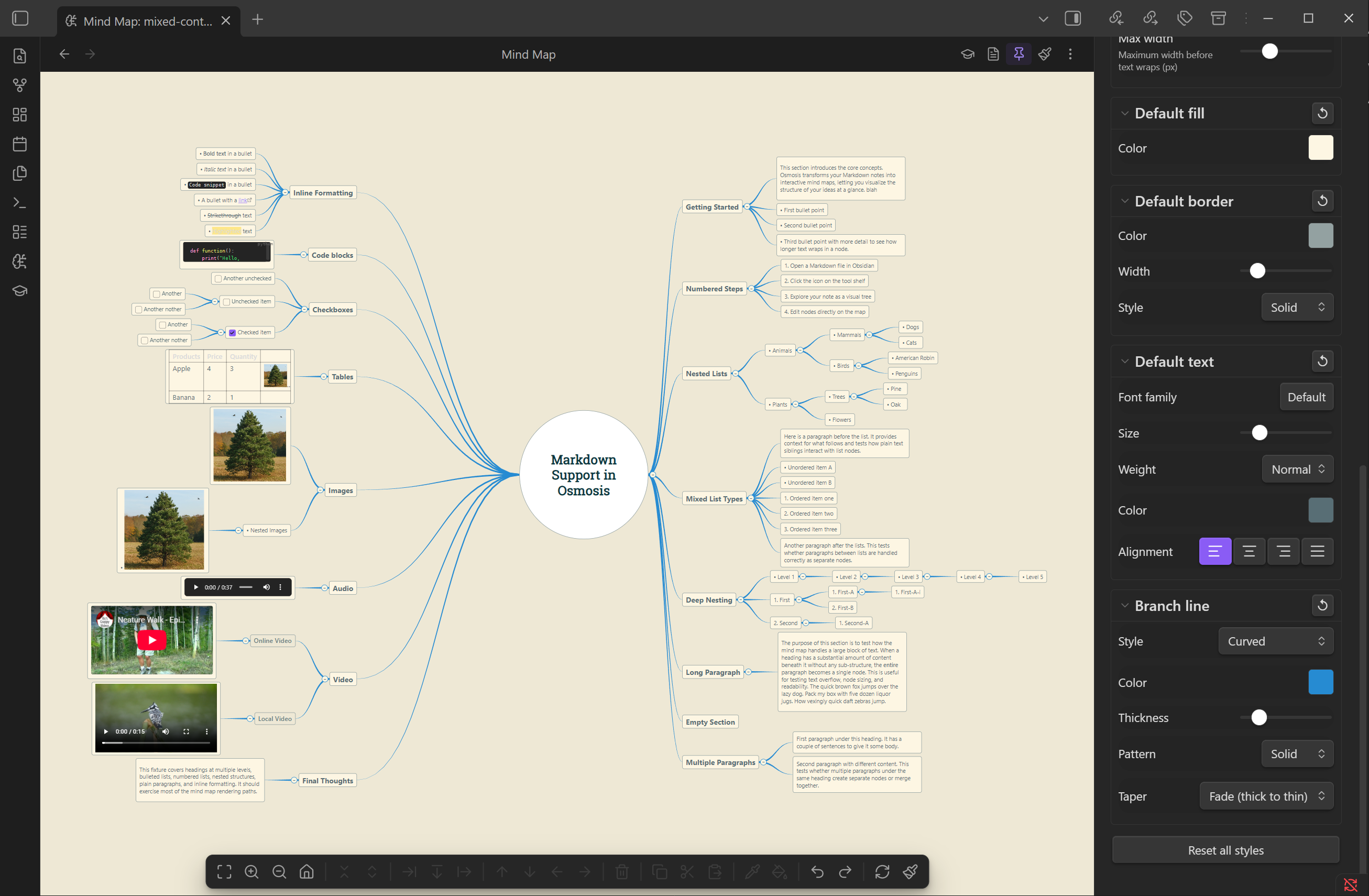

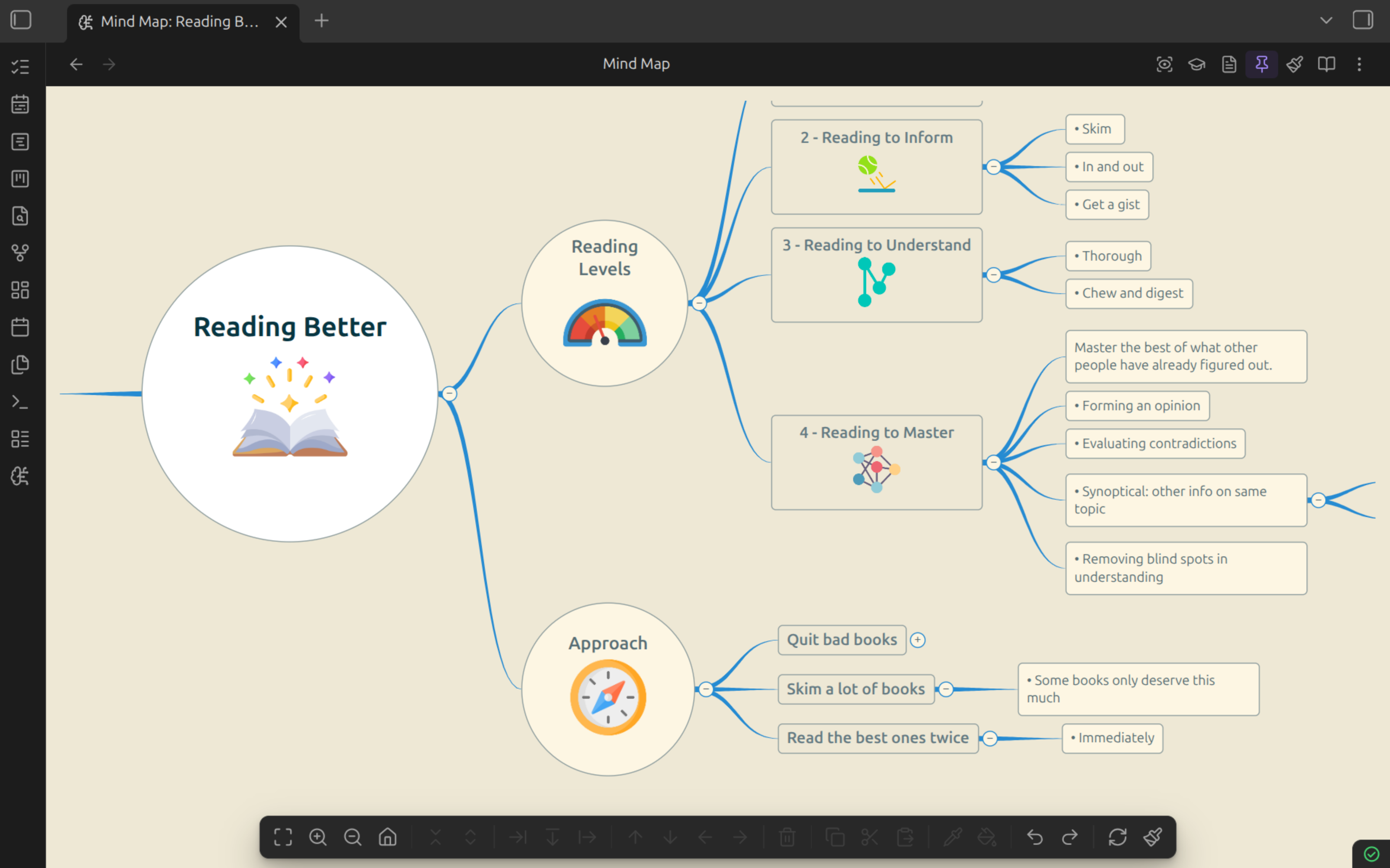

Solarized Light theme

Theme Style
Default Inherits your Obsidian theme colors
Ocean Cool blues

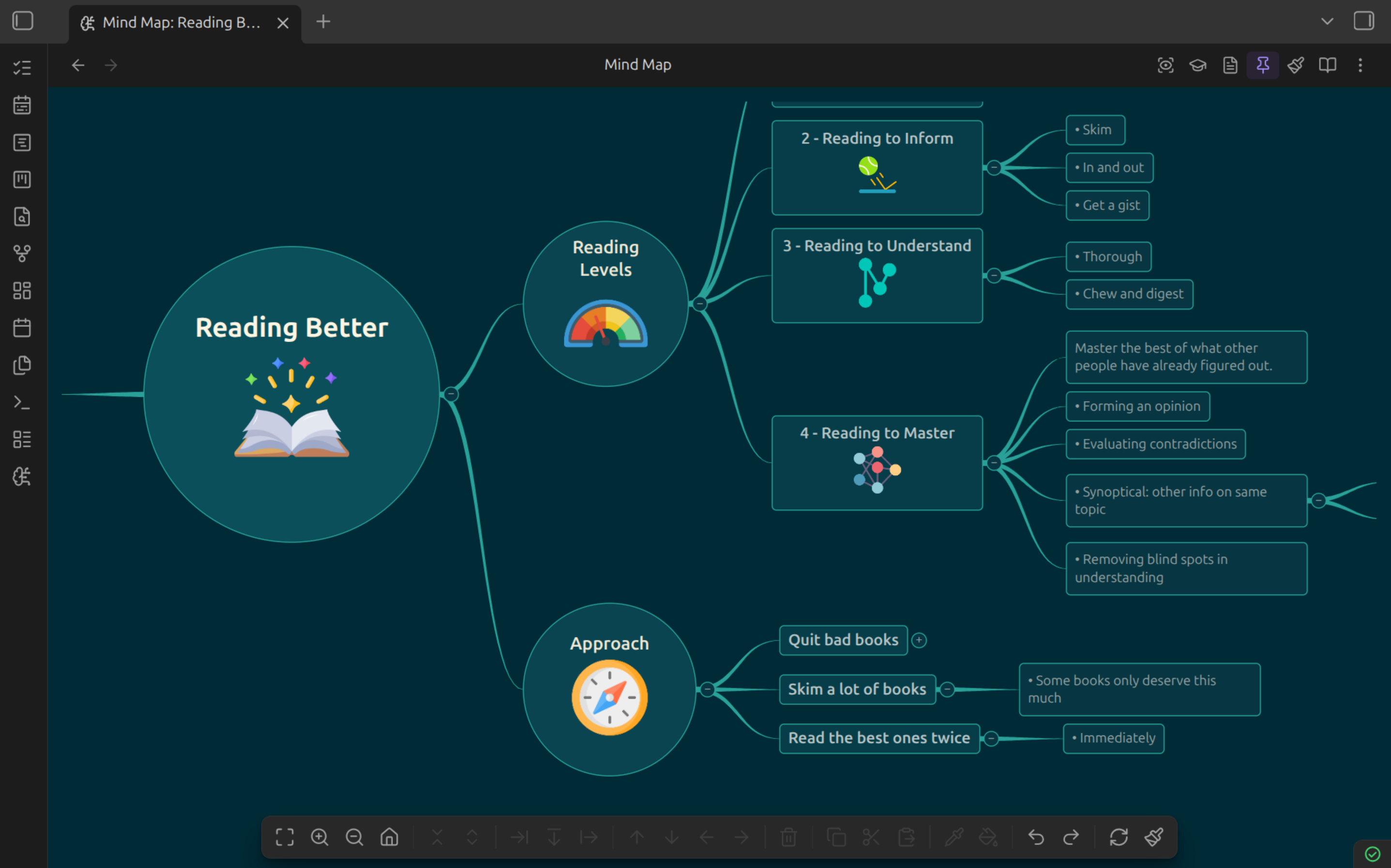

Solarized Dark / Light Ethan Schoonover's palette
Nord Arctic blue tones
Dracula Dark purple and pink

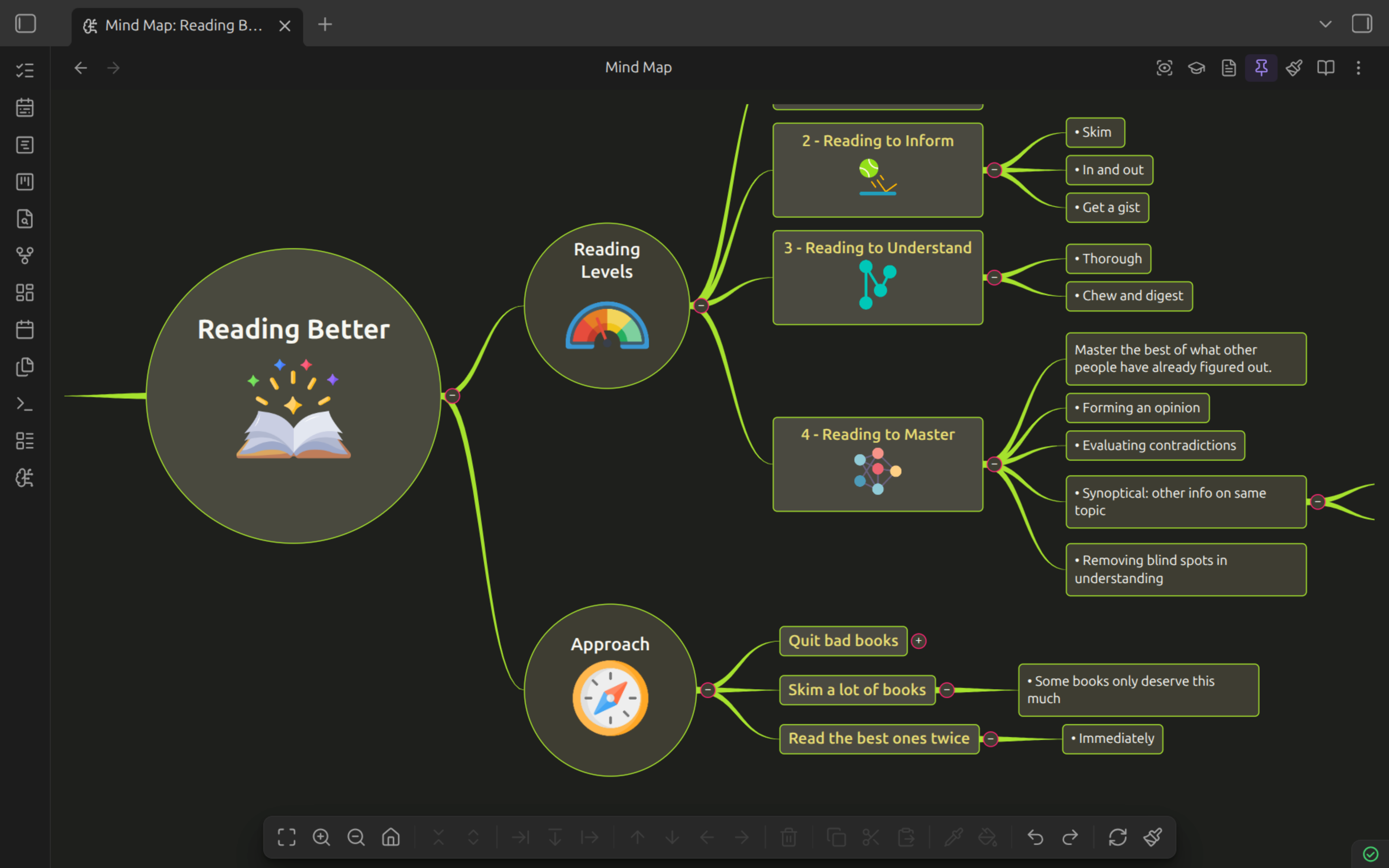

Monokai High-contrast dark
Gruvbox Dark Retro warm tones

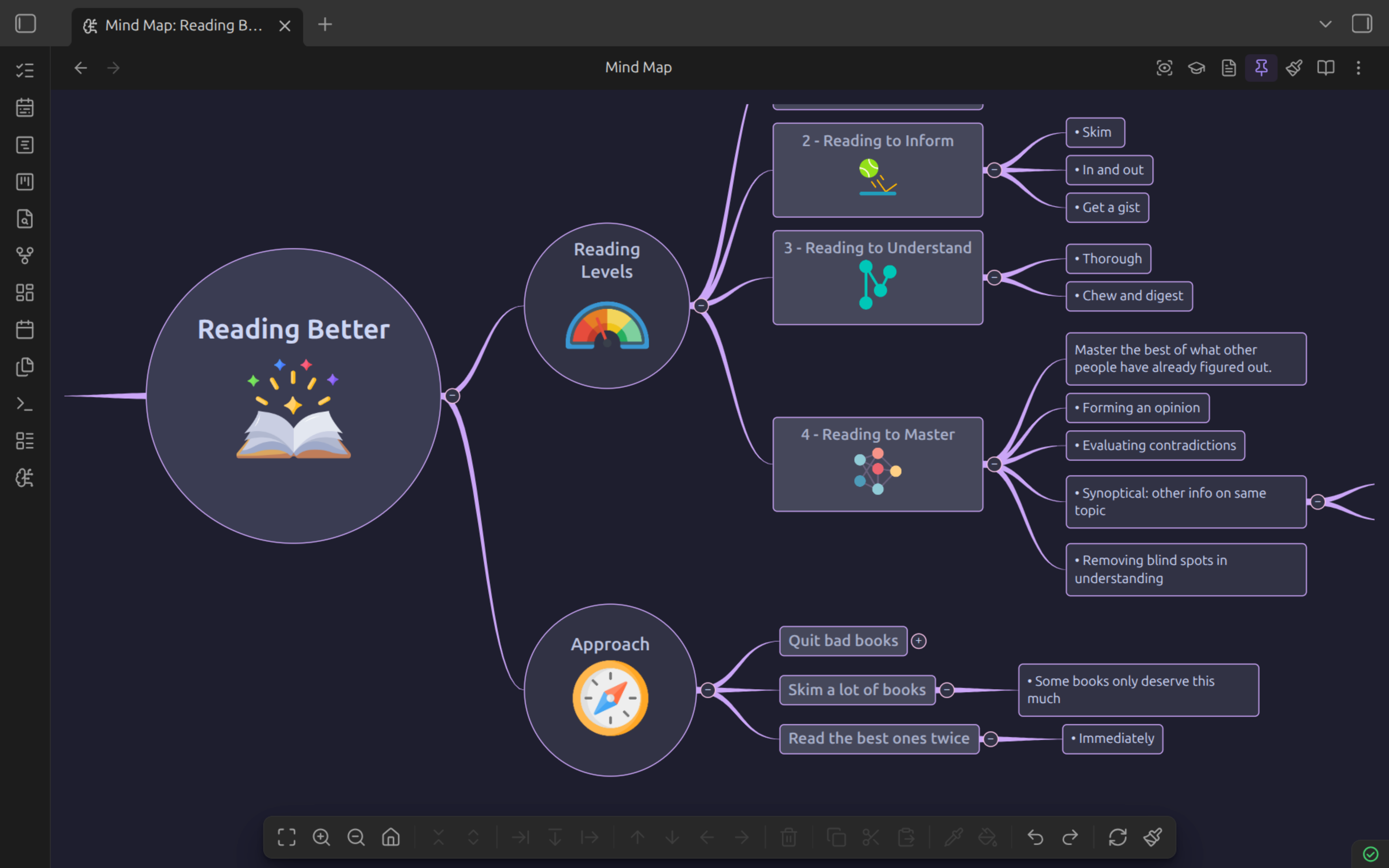

Catppuccin Mocha Pastel dark
Tokyo Night Soft dark blues

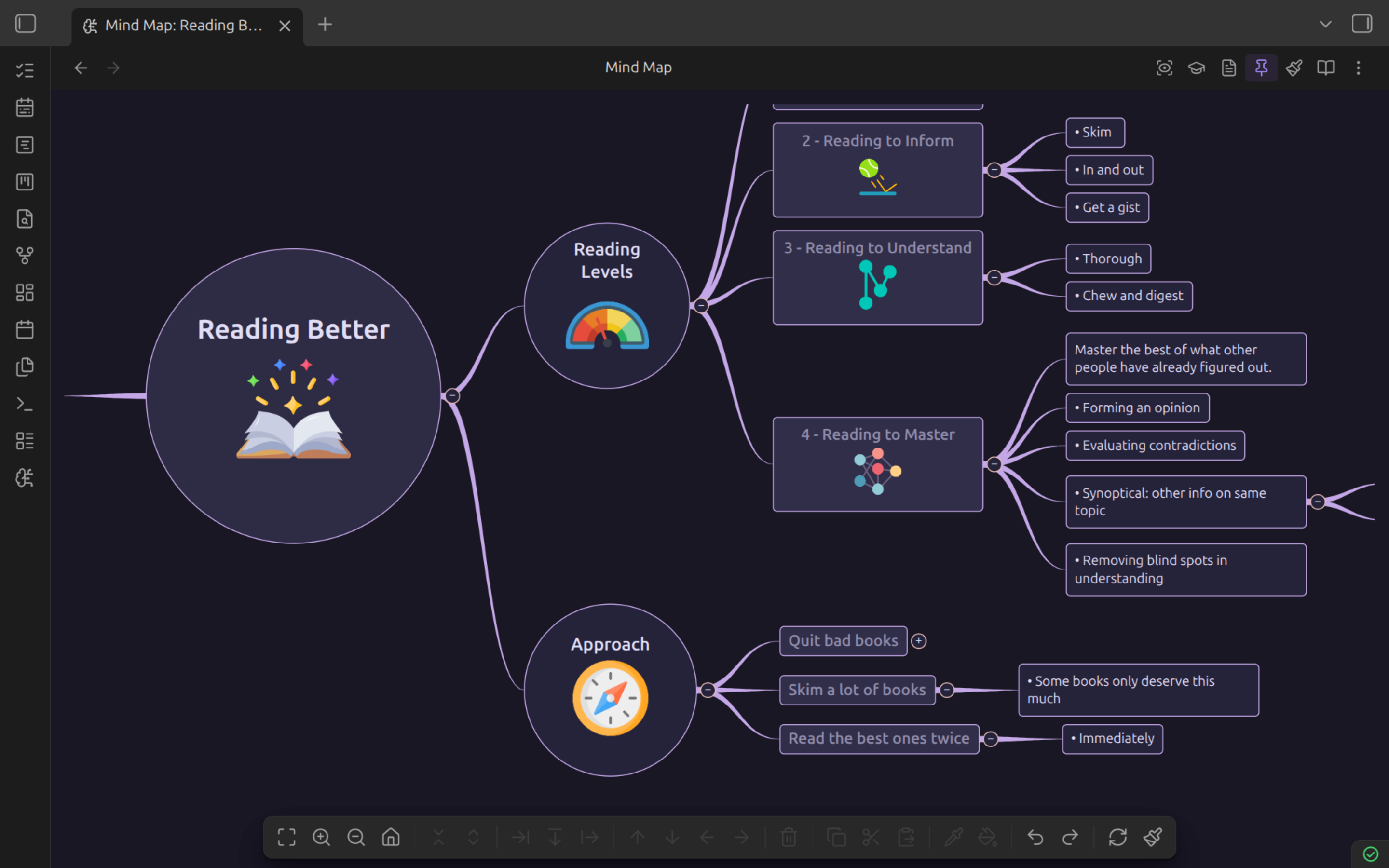

Rose Pine Muted pinks and purples

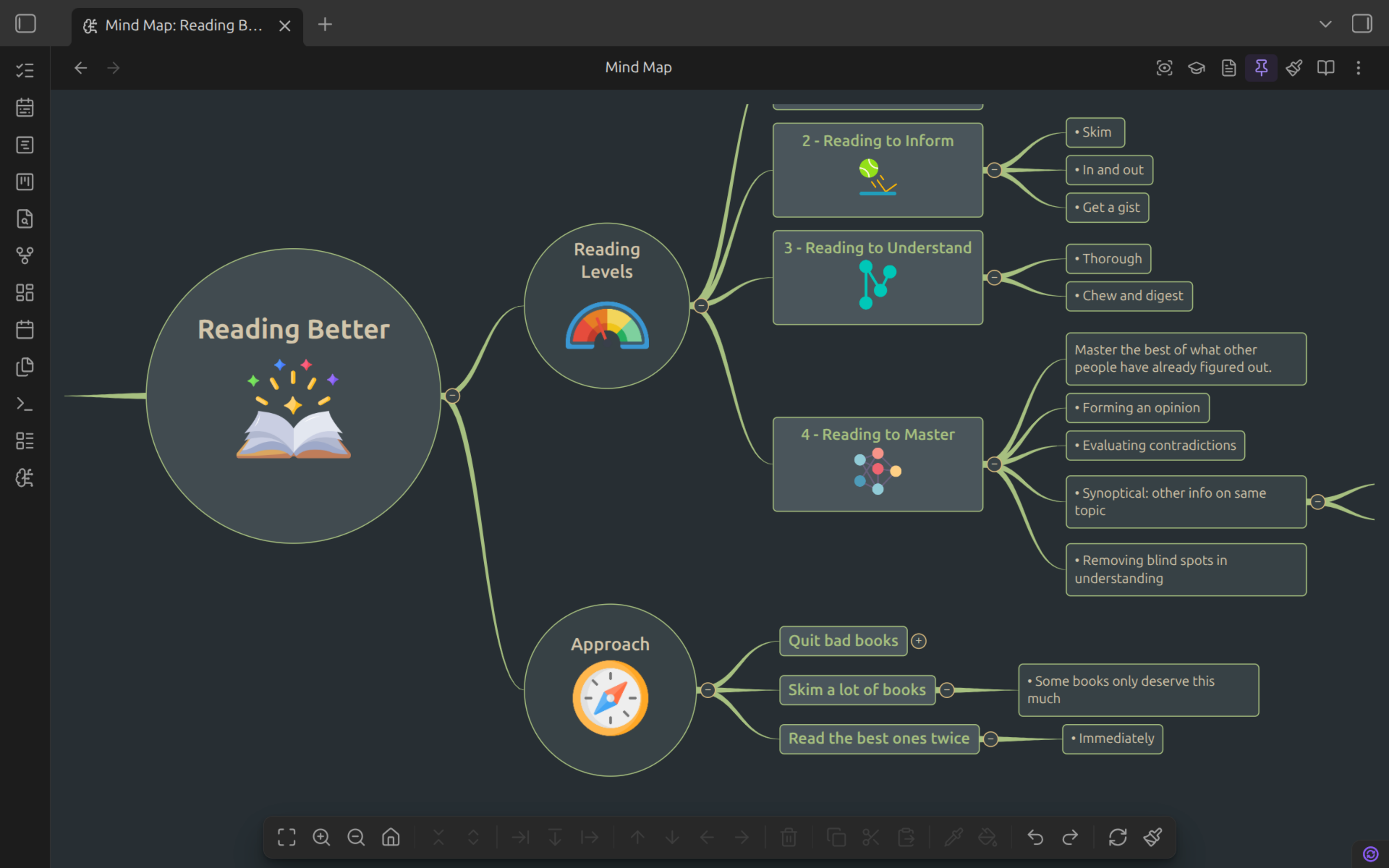

Everforest Soft green earth tones

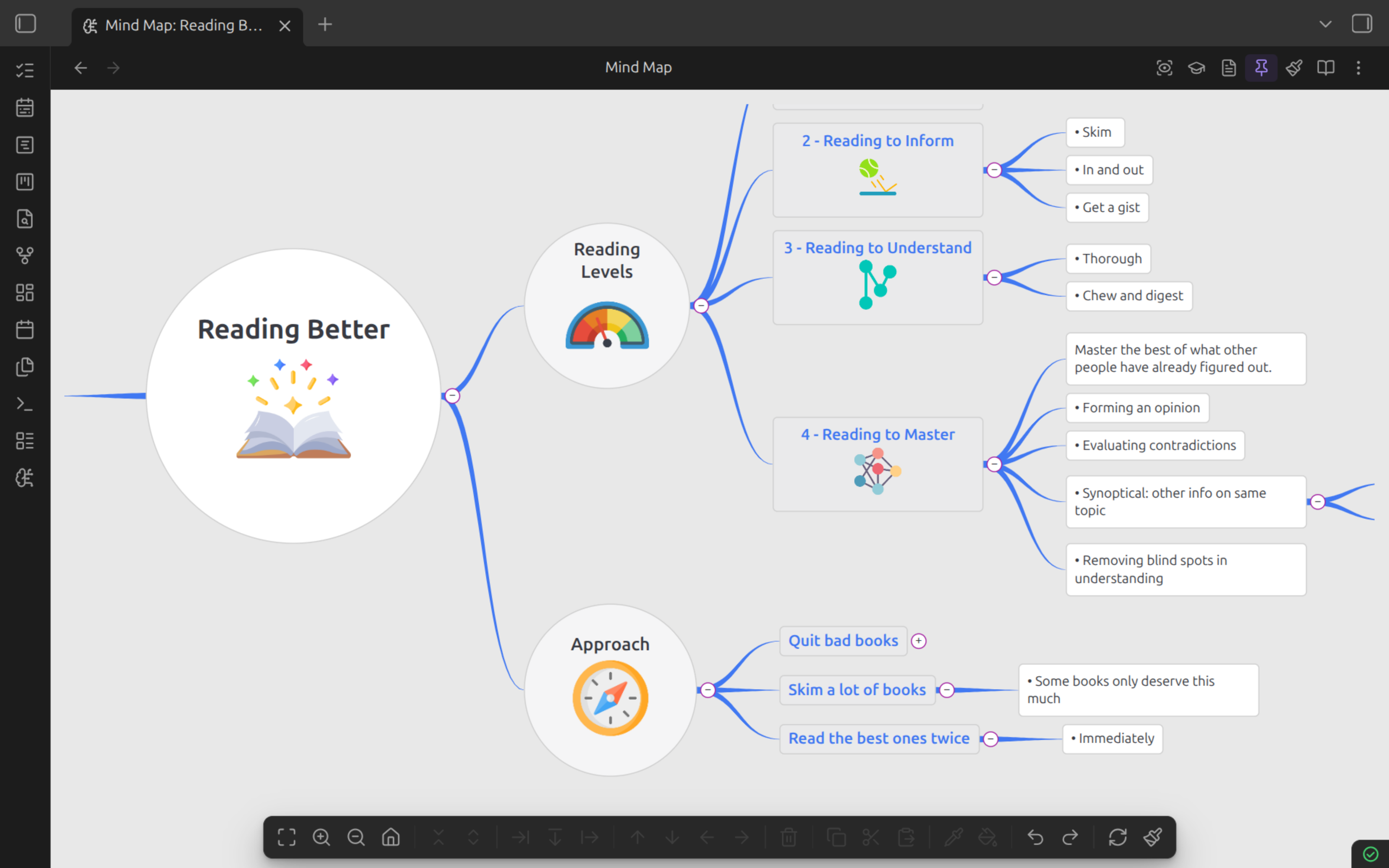

One Light Clean, bright

You can create, rename, and delete custom themes from the Map tab in the properties sidebar.

Per-Map Settings

Map styles are stored in osmosis-styles frontmatter, so each note can have its own layout and appearance:

---
osmosis-styles:
  direction: top-down
  theme: Nord
  balance: both-sides
  branchLineStyle: straight
  horizontalSpacing: 100
  verticalSpacing: 12
---

All Map Properties

Property Values Default
direction left-right, top-down left-right
theme Any preset or custom theme name Default
mapLayout classic, radial classic
balance one-side, both-sides, alternating one-side
layoutSide right, left, down, up right
branchLineStyle curved, straight, angular, rounded-elbow curved
branchLinePattern solid, dashed, dotted solid
branchLineTaper none, fade, grow none
topicShape See node shapes below rounded-rect
collapseDepth 0 (none) through 6 0
horizontalSpacing Pixels 80
verticalSpacing Pixels 8
maxNodeWidth Pixels —

Node Shapes

Osmosis supports 15 node shapes:

rectangle rounded-rect ellipse circle diamond hexagon octagon triangle parallelogram trapezoid pill cloud arrow-right underline none

Branch Line Styles

Style controls the line geometry:

  • curved — Smooth S-curves (default)
  • straight — Direct lines
  • angular — Right-angle bends
  • rounded-elbow — Right-angle bends with rounded corners

Pattern controls the stroke:

  • solid (default), dashed, dotted

Taper controls the line thickness variation:

  • none (default) — Uniform thickness
  • fade — Thinner toward children
  • grow — Thicker toward children

Style Cascade

When multiple style sources apply to the same node, they resolve in priority order (highest to lowest):

  1. Local — Per-node style overrides (set via Format tab)
  2. Class — Global style classes
  3. Variant — Node variant overrides
  4. Reference — Theme reference
  5. Theme — Preset or custom theme (lowest priority)
