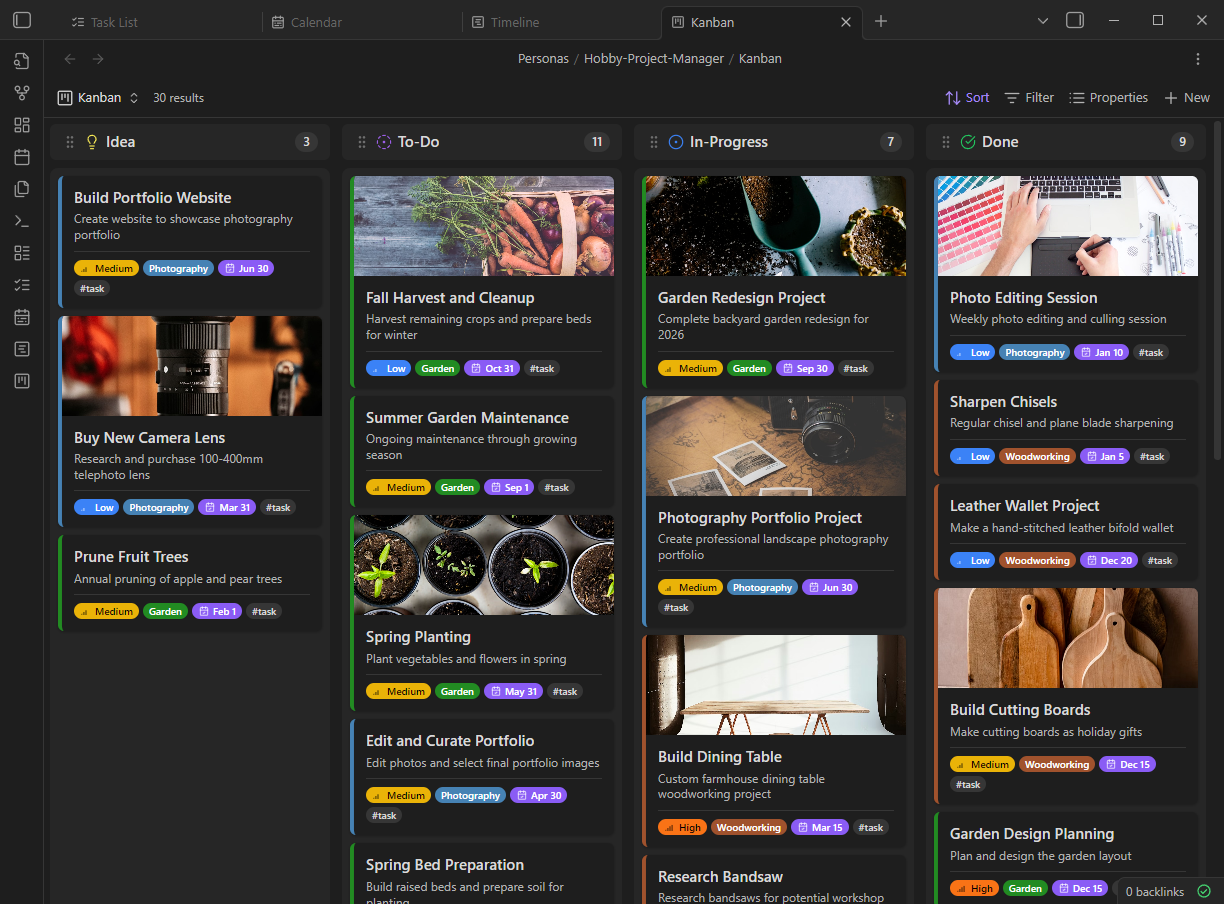

Kanban View¶
Organize tasks with drag-and-drop columns and customizable cards.
Features¶
- Drag and drop cards between columns
- Swimlanes for additional grouping
- Column and swimlane reordering
- Cover images on cards
- Configurable card display
Configuration¶

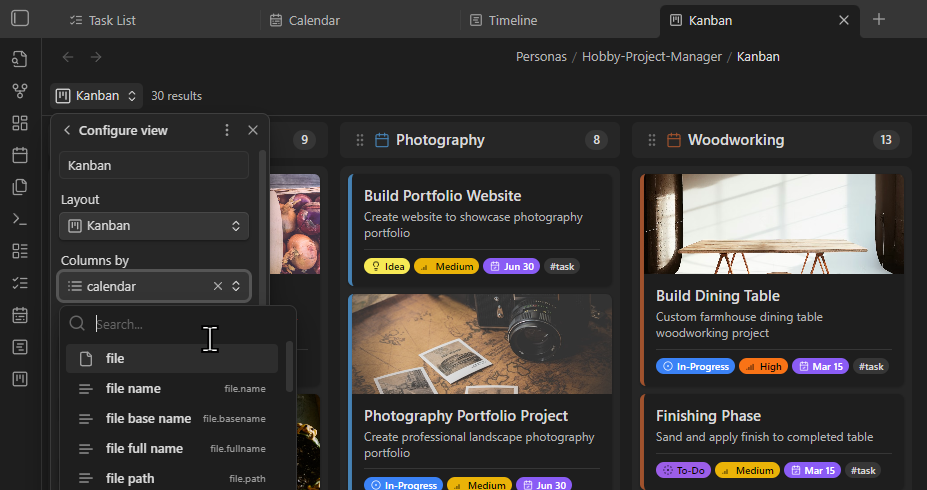

Columns By¶
Group cards into columns by any property:
- Status - Default, shows workflow stages
- Priority - Group by importance
- Calendar - Group by project/category
- Folder - Group by file location
- Tags - Group by tag
- Any Property - Custom categorical fields
Swimlanes By¶
Add horizontal grouping:
- None - No swimlanes
- Status - If columns are by priority
- Priority - If columns are by status
- Calendar - By project
- Any Property - Custom grouping

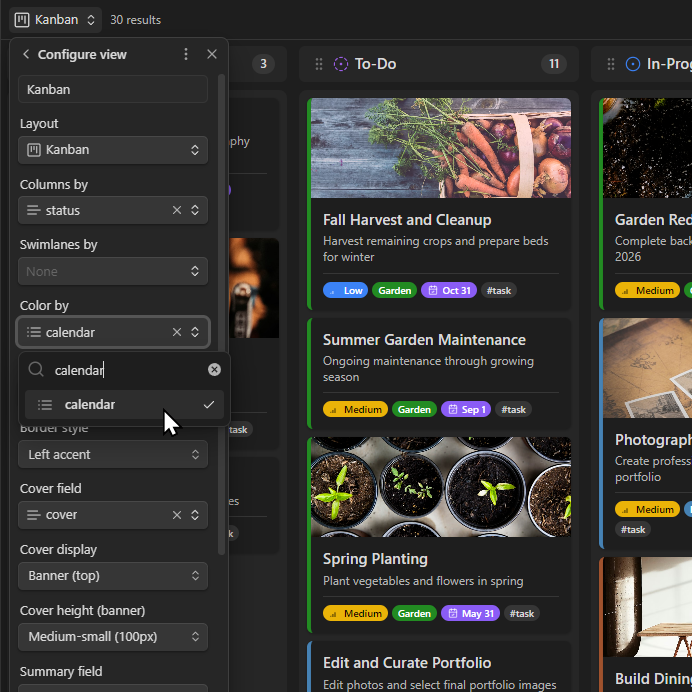

Color By¶
How cards are colored:
- Calendar - By calendar/project color
- Status - By status color
- Priority - By priority color
- Custom - Any categorical property
Card Display¶
| Option | Description |
|---|---|
| Title By | Which property shows as card title |

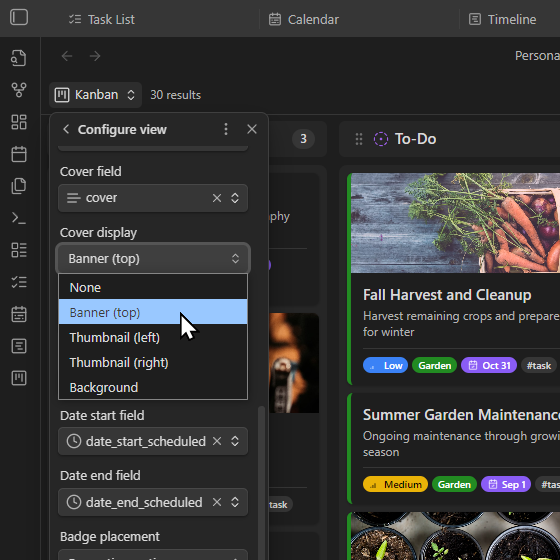

| Cover Field | Property containing image path |
| Cover Display | Banner, thumbnail, or background |
| Cover Height | Height in pixels |
| Border Style | Left accent, full border, or none |
| Badge Placement | Inline or properties section |
| Column Width | Width in pixels |
| Hide Empty Columns | Don't show columns with no cards |
Headers¶
| Option | Description |
|---|---|
| Freeze Headers | Keep headers visible on scroll |
| Swimlane Orientation | Horizontal or vertical labels |
Interactions¶
Moving Cards¶
- Drag and Drop - Move cards between columns
- Touch Hold - On mobile, hold 200ms then drag
- Auto-scroll - Drag to edges to scroll
Reordering Columns¶
- Drag the column header to reorder
- New order persists in the view
Reordering Swimlanes¶
- Drag the swimlane header to reorder
- Works on both desktop and mobile
Adding Cards¶
- Click the "+" button in any column
- Opens the Item Modal with column value pre-filled
Keyboard Navigation¶
Navigate the board without a mouse:
| Key | Action |
|---|---|
| Up / K | Move focus up |
| Down / J | Move focus down |
| Left / H | Move focus left (to previous column) |
| Right / L | Move focus right (to next column) |
| Enter / Space | Open focused card |
| Esc | Clear focus |
Vim-Style Navigation
The h, j, k, l keys work alongside arrow keys for vim users.
Mobile Support¶
- Touch Drag - Hold card for 200ms, then drag
- Visual Feedback - Card lifts and scales when ready to drag
- Auto-scroll - Drag to edges triggers scrolling
- Swimlane Drag - Same hold-and-drag for swimlane rows
Virtual Scrolling¶
For performance with large datasets:
- Columns with 15+ cards use virtual scrolling
- Only visible cards are rendered
- Smooth scrolling maintained
